2016 Global Updates Article

Prenatal Imaging Following Zika Exposure

October 2016

With a clear link to microcephaly established, international health care agencies now recommend serial ultrasounds for women with positive Zika testing.

World Health Organization
Centers for Disease Control and Prevention (CDC)
Pan American Health Organization (PAHO)
European Centre for Disease Prevention and Control (ECDC)
Public Health England


Detailed imaging guidelines are available from the International Society of Ultrasound in Obstetrics and Gynecology and highlight a balance of measurements, specific intracranial findings, detection of other abnormalities and local resources including the availability of ultrasound imaging. Amniocentesis for Zika viral detection is considered with extrapolation from other viral teratogens such as cytomegalovirus infections.

Read more →

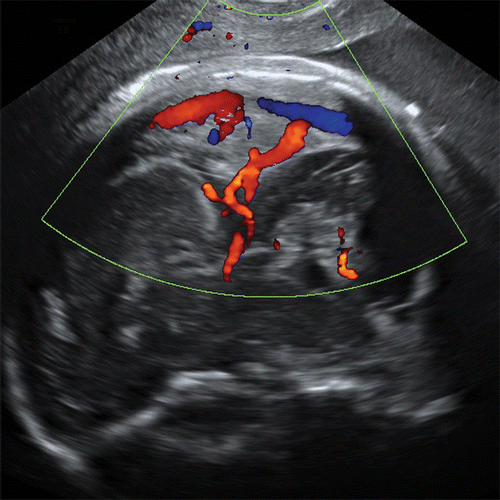

Ultrasound changes, often in the CNS, can appear later in pregnancy after initial early images without concern. Ultrasound remains the modality for imaging surveillance. For some affected fetuses, head circumference is maintained, but CNS damage is evident supporting the need for detailed intracranial evaluations in addition measurements. A new study from Brazil utilizing ultrasound and subsequent CT/MRI offers further delineation of the pattern of CNS changes including enlarged ventricles, abnormalities of the corpus callosum, brainstem abnormalities and calcification in the transition zone between the white and gray matter. The latter appears to be unique to Zika.

Read more →

As with all aspects of Zika infection, from absolute risk, confounders of risk, testing methods to treatment, the discrete imaging patterns are emerging as the pandemic evolves. First trimester exposure is likely to result in the greatest risk; although potential damage especially to the CNS can occur following exposure at all trimesters. Hydrops, genital hypoplasia, multiple pteygium, placental signs of inflammation (thickening, calcifications) and growth restriction have all been noted.

Read more →

Long-term studies will be essential to evaluate the outcomes of exposed infants. For all infants with Zika exposure, it is critical to gain knowledge about this emerging infectious teratogen. International efforts is needed and we encourage you to participate.

Read more →
